ATV Track Kits
CURRENT TRACK KITS | ATV

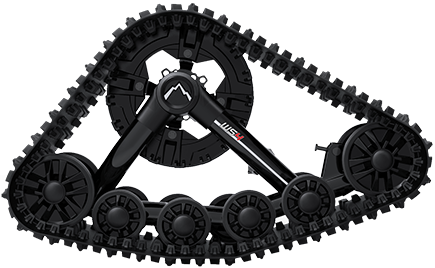

WS4
LESS EFFORT, BETTER COMFORT
The WS4 is the logical continuation of our “Commander” series, with reduced driving effort, decreased vibration and same traction capability as always for the best performance in all 4 seasons. Of course, the same sturdiness is maintained through a 2.5” tubular frame and an overall lightweight necessary to surf on snow.
WS4 L-RATIO
REDEFINE AGIILITY AND CONTROL
Transfer 15% more force with the 13 inch WS4 L-Ratio Commander sprocket. For those who see a track kit more as a working tool than a recreational accessory, here's the new Commander WS4 L-Ratio. Equipped with our new 13 inch sprocket, allowing more power to the track, the Commander WS4 L-Ratio will help you complete your hardest job while saving you time.
PREVIOUS TRACK KITS
RS4
Thanks to its unique and innovative design, not only does the RS4 release the full potential of the ATV in terms of top speed, but it is easy to maneuver and offers control and stability that provides both driving pleasure and trail safety.
Width: 203.2 mm / 8”
Length: 2438.4 mm / 96”
Weight (without mount kit): 75 lb. / 34 kg front, 69 lb. / 31 kg rear
Frame: Steel
Lug height: 25 mm / 1.00” front, 22 mm / 0.87” rear
Drive type: External
Ground surface (sq. in.): 1.32 m² / 2045 in² total = 0.61 m² / 945 in² in front and 0.71 m² / 1100 in² in rear
Ground clearance: Increase of 125 mm / 5”
Speed loss: 20%
Initial installation time: 2 hours
Subsequent installation time : 1 hour
Applications : ATV only Trail only

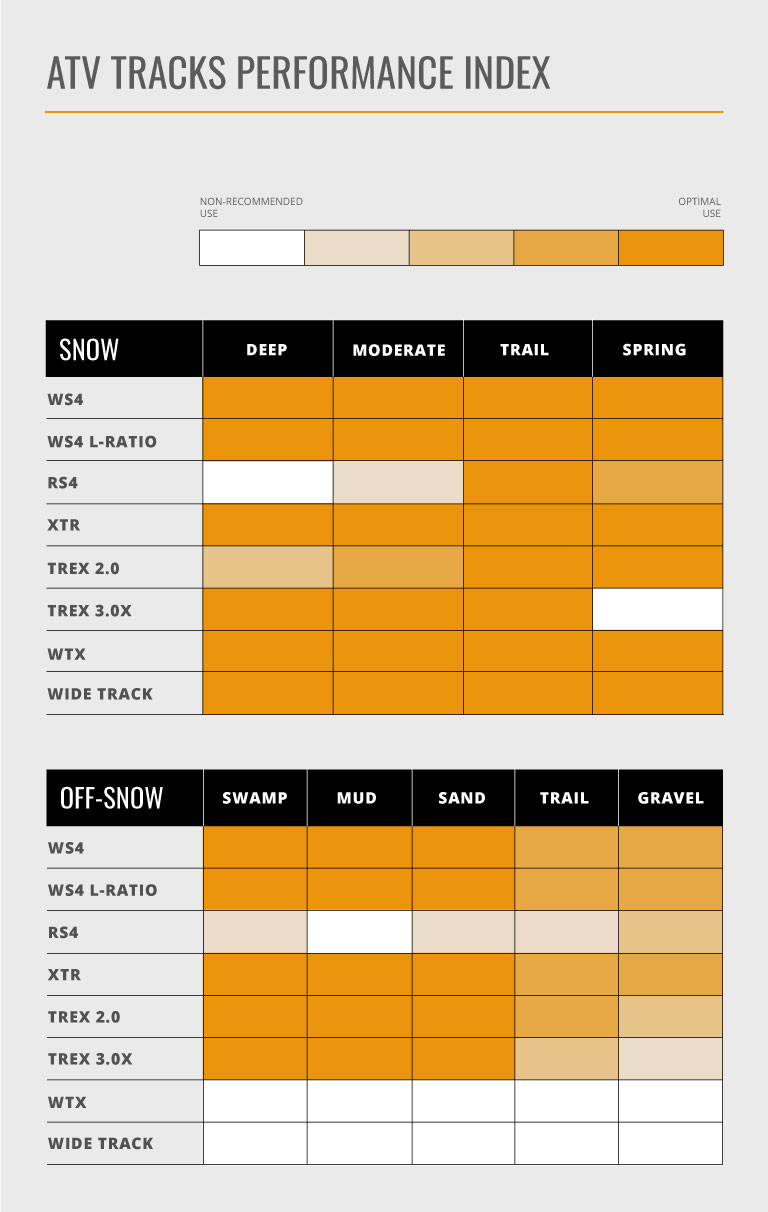

PERFORMANCE INDEX
NON RECOMMENDED  | OPTIMAL  | |
SNOW | |
|---|---|
| Deep | |
| Moderate | |
| Trail | |
Spring | |
NON RECOMMENDED | OPTIMAL | |
OFF-SNOW | |
|---|---|
| Swamp | |
| Mud | |
| Sand | |
| Dirt Track | |
| Gravel | |
XTR
The XTR is a proven design with well-researched tread pattern giving optimum performance in both summer and winter seasons. The oversized tubes provide total reliability while keeping the light weight needed in deep snow. Its large circumference sprocket increases the ATV’s speed. The XTR makes you the "Commander" in chief on all types of terrain!
Width: 292 mm / 11.5 in. Front, 330.2 mm / 13 in. Rear
Length: 2460 mm / 97 in. Front, 2540 mm / 100 in. Rear
Weight (without mount kit): 72 lbs. / 32 kg Front, 75 lb / 34 kg Rear
Frame: Steel
Lug height: 32 mm / 1.25 in., Front, 38 mm / 1.5 in. Rear
Drive type: Internal
Ground surface (sq. in.): 1.32 m² / 2045 in² = 0.61 m² / 945 in² Front and 0.72 m² / 1100 in² Rear
Ground clearance: 125 mm / 5 in. Higher
Speed loss: 35%
Initial installation time: 2 hours
Subsequent installation time: 1 hour
Applications : ATV only
PERFORMANCE INDEX
NON RECOMMENDED | OPTIMAL | |
SNOW | |
|---|---|
| Deep | |
| Moderate | |
| Trail | |
Spring | |
NON RECOMMENDED | OPTIMAL | |
OFF-SNOW | |
|---|---|
| Swamp | |
| Mud | |
| Sand | |
| Dirt Track | |
| Gravel | |
TREX 3.0X
Equipped with four-season traction and developed for maximum performance in snow conditions. The Trex 3.0X changes everything! You now have the best four-season kit available on the market, plus it has a high quality steel frame without slides for summer riding and paddle type design tracks for superior winter performance.
Width: 292 mm / 11.5 in. Front, 355.6 mm / 14 in. Rear
Length: 2438 mm / 96 in. Front and Rear
Weight (without mount kit): 86 lbs. / 39 kg Front, 87 lb / 39.5 kg Rear
Frame: Steel
Lug height: 25 mm / 1 in., Front, 32 mm / 1.25 in. Rear
Drive type: Internal
Ground surface (sq. in.): 1.34 m² / 2076 in²
Ground clearance: 101.6 mm / 4 in. Higher
Speed loss: 35%
Initial installation time: 2 hours
Subsequent installation time: 1 hour
Applications: ATV only
PERFORMANCE INDEX
NON RECOMMENDED | OPTIMAL | |
SNOW | |
|---|---|
| Deep | |
| Moderate | |
| Trail | |
Spring | |
NON RECOMMENDED | OPTIMAL | |
OFF-SNOW | |
|---|---|
| Swamp | |
| Mud | |
| Sand | |
| Dirt Track | |
| Gravel | |
TREX 2.0
You want to be in control and do what you please. Go off the beaten track and overcome every obstacle. Be the hero of your adventures, brave out Mother Nature and set the tone for all seasons. Make your way with the Trex 2.0 ATV tracks.
Width: 292 mm / 11.5 in., Front and Rear
Length: 2438 mm / 96 in., Front and Rear
Weight (without mount kit): 86 lbs. / 39 kg
Frame: Steel
Lug height: 25 mm / 1 in., Front and Rear
Drive type: Internal
Ground surface (sq. in.): 1.22 m² / 1900 in²
Ground clearance: 101.6 mm / 4 in. higher
Speed loss: 35%
Initial installation time: 2 hours
Subsequent installation time: 1 hour
Applications: ATV only
PERFORMANCE INDEX
NON RECOMMENDED | OPTIMAL | |
SNOW | |
|---|---|
| Deep | |
| Moderate | |
| Trail | |
Spring | |
NON RECOMMENDED | OPTIMAL | |
OFF-SNOW | |
|---|---|
| Swamp | |
| Mud | |
| Sand | |
| Dirt Track | |
| Gravel | |
WTX
Being there isn't enough. You dream of taking the lead, excelling, exploring and going where nobody has ever set foot (nor wheels) before. You crave challenges and are not afraid of new experiences? Reach new heights with the WTX ATV tracks.
Width: 292 mm / 11.5 in. Front, 355.6 mm / 14 in. Rear
Length: 2438 mm / 96 in., Front and Rear Track
Weight (without mount kit): 70 lbs. / 31.75 kg. Front Track, 76 lbs. / 34.47 kg. Rear Track
Frame: U.H.M.W.
Lug height: 25 mm / 1 in. Front, 32 mm / 1.25 in. Rear
Drive type: External
Ground surface (sq. in.): 1.35 m² / 2100 in²
Ground clearance: 101.6 mm / 4 in. higher
Speed loss: 35%
Initial installation time: 2 hours
Subsequent installation time: 1 hour
Applications: ATV & UTV
PERFORMANCE INDEX
NON RECOMMENDED | OPTIMAL | |
SNOW | |
|---|---|
| Deep | |
| Moderate | |
| Trail | |
Spring | |
NON RECOMMENDED | OPTIMAL | |
OFF-SNOW | |
|---|---|
| Swamp | |
| Mud | |
| Sable | |
| Dirt Track | |
| Gravel | |
WIDE TRACK
Snow, ice, hail: Nothing stops you anymore. You are ready to fight the elements and scout new territories you didn't even know existed. You feel courageous and skillful even before hitting the trails. Dominate winter with the Wide Track.
Width: 292 mm / 11.5 in. Front, 342.9 mm / 13.5 in. Rear
Length: 2438 mm / 96 in., Front and Rear Track
Weight (without mount kit): 70 lbs. / 31.75 kg. Front Track, 75 lbs. / 34 kg. Rear Track
Frame: U.H.M.W.
Lug height: 25 mm / 1 in. Front, 32 mm / 1.25 in. Rear
Drive type: External
Ground surface (sq. in.): 1.32 m² / 2050 in²
Ground clearance: 101.6 mm / 4 in. higher
Speed loss: 45%
Initial installation time: 2 hours
Subsequent installation time : 1 hour
Applications : ATV & UTV
PERFORMANCE INDEX
NON RECOMMENDED | OPTIMAL | |
SNOW | |
|---|---|
| Deep | |
| Moderate | |
| Trail | |
Spring | |
NON RECOMMENDED | OPTIMAL | |
OFF-SNOW | |
|---|---|
| Swamp | |
| Mud | |
| Sand | |
| Dirt Track | |
| Gravel | |
